Pressure Differential

  • 101NN Single Diaphragm Differential Pressure Switch
  • 101NN Single Diaphragm Differential Pressure Switch
101NN Single Diaphragm Differential Pressure Switch101NN Single Diaphragm Differential Pressure Switch

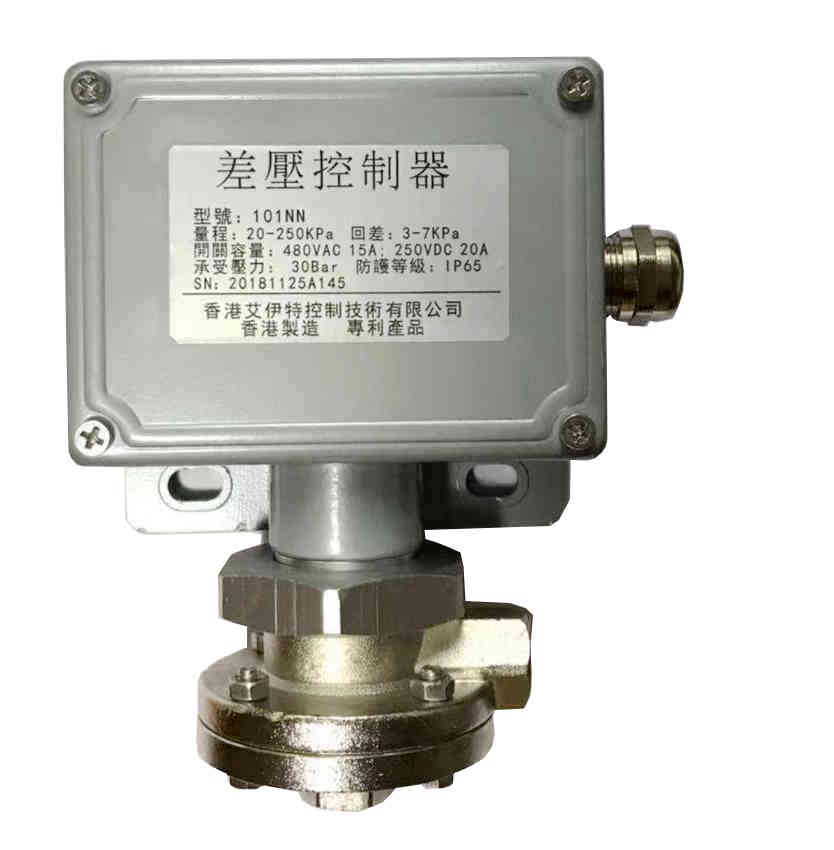

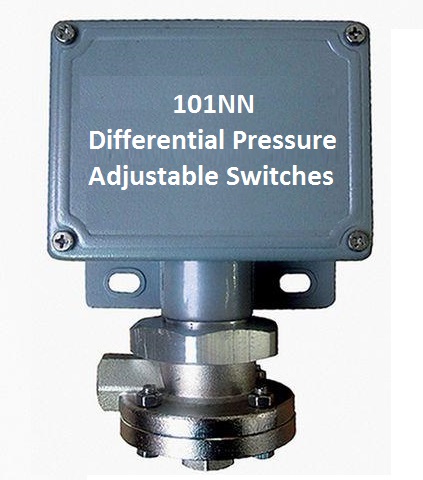

101NN Single Diaphragm Differential Pressure Switch

  • CE certificate
  • PTFE Diaphragm
  • Brass with Nickle Plated shell
  • Max Static Pressure 35bar
  • Product description: 101NN Single Diaphragm Differential Pressure Switches, Explosion proof differential pressure switches is available. It could work at the oil system for differential pressure control. CE certificate.
  • ISO9001 ISO14001 ISO45001 CE ATEX
101NN differential pressure switches is a low cost products, suited for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected. Explosion proof differential pressure switches is available. It could work at the oil system for differential pressure control. CE certificate.

Specification:

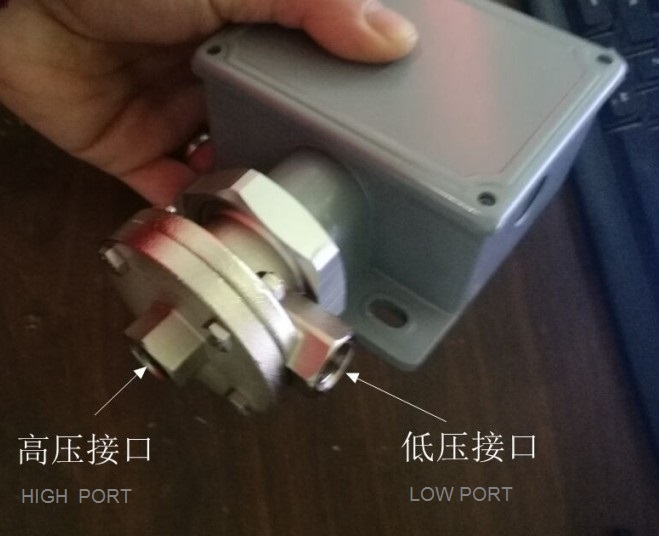

* Pipe Connection: Female BSP1/4"( NPT1/4" in option)
* Setpoint Adjustable Range: 3Psi~36Psi; 20-250KPa
* Max Break Pressure: 500Psi
* Switch: SPDT NO & NC
* Switch Capacity: Max AC 480V 20A; DC250V 5A.
* Work Accuracy: 1:1000 m2/s
* Repeatability Error: less than 0.5%
* Work Temperature: -20C~100C
* Media Temperature: 0~120C
* Resistance to shock: 40m/s
* Enclosure Rating: IP66

 101NN single diaphragm differential pressure monitor switch

101NN single diaphragm differential pressure switches are built rugged for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected.

These, field-mounted instruments feature a flexible modular design that provides cost effective sensing solutions for air, oil, water and non-corrosive process fluid applications. The two-piece piston design allows for complete differential pressure reversal without damage.
