Flow Switches

  • GE-315 Paddle Flow Switches

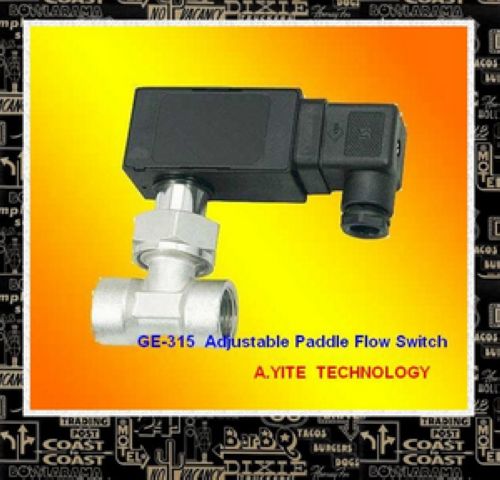

GE-315 Paddle Flow Switches

GE-315 Paddle Flow Switches

  • Product description: The GE-315 Series Paddle Water Flow Switch is a new design, adopt micro switch 5A 250V max, stability structure, long life time, no rust and bad contact, and the Protection Grade up to IP65, it could
  • INQUIRY
The GE-315 Series Paddle Water Flow Switch is a new design, adopt micro switch 5A 250V max, stability structure, long life time, no rust and bad contact, and the Protection Grade up to IP65, it could be applied in corrosive air environment. CE certificate for the flow switch, UL certificate for micro switch.

It is similar as Sika VHS & Honsberg UM3K UR3K CM2K series flow switch, but much lower price.

Character:
* Good Repeatability
* Low Pressure Loss
* Dirt Resistant
* Hermetic Separation of Electrical and Hydraulic Component
* Easy Adjustment of Switch


Specification:
* Electricity: 250V max, 5A max
* Output: SPDT Micro Switch
* Tolerance -/+15% of full scal
* Media Temperature -30~110 C
* Average Pressure Loss 0.01bar at Qmax.
* Metering Substances Oil, Water, Gas, Air
* Max Pressure 25bar (40bar could be custom-made)
* Protection Grade IP65
* Materials: Stainless Steel or Brass
* Pipe Connection: BSP or NPT , Male or Female thread.

* Wire Connection: hirschman DIN or Cable with sealing



GE-315  Inline Type:

Model

Pipe Size

Adjustable Range for Flow Action Setpoint (L/min)

1st Range

2nd Range

3rd Range

4th Range

5th Range

GE-315-G3/8"

DN10

1.4~2.0

2.0~2.6

2.4~3.2

2.7~3.6

3.7~5.0

GE-315-G1/2"

DN15

3.3~4.4

4.4~5.9

5.3~7.2

6.0~8.1

8.4~11.3

GE-315-G3/4"

DN20

5.8~7.8

7.8~10.6

9.4~12.8

10.6~14.4

14.9~20.1

GE-315-G1"

DN25

9.1~12.3

12.2~16.5

14.7~19.9

16.6~22.5

23.2~31.4

GE-315-G5/4"

DN32

14.8~20.1

20.0~27.1

24.1~32.7

27.3~36.9

38.1~51.5

GE-315-G3/2"

DN40

23.2~31.4

31.3~42.3

37.7~51.0

42.6~57.6

59.5~80.5

GE-315-G2"

DN50

36.2~49.0

48.8~66.1

59.0~79.8

66.8~90.7

93.0~125.8

* NPT or other thread is available
* The adjustable range is for flow setpoint, not for max flow rate.
* The max T-fitting pipe size could be DN100, we could supply the adjustable paddle flow switch with T-fitting DN63(2+1/2")  DN75(2+3/4")  DN80(3")  DN90(3+1/2")  DN100(4")
