Flow Switches

  • GE-342 Oil Flow Switches
GE-342 Oil Flow Switches

GE-342 Oil Flow Switches

  • Max Pressure 100bar
  • Thread could be customized
  • Explosion proof could be customized
  • CE certificater
  • Product description: GE-342 Adjustable Piston flow switch for liquid, Oil, or gaseous media, with spring-supported piston and magnetic triggering of a reed switch. the shell could be stainless steel 304 or 316L, very beau
  • ISO9001 ISO14001 ISO45001 CE ATEX

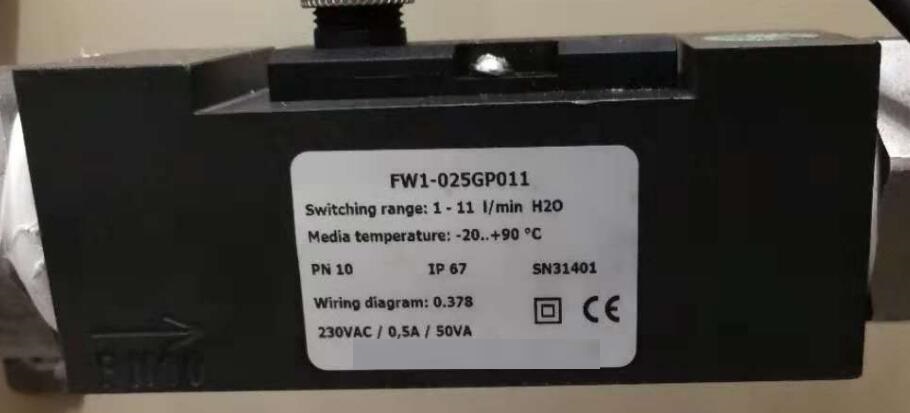

GE-342 Adjustable Piston flow switch for liquid, Oil, or gaseous media, with spring-supported piston and magnetic triggering of a reed switch. the shell could be stainless steel 304 or 316L, very beautiful outlook. Similar as HONSBERG  FW1-008GM006, FW1-010GM006, FW1-015GM006 FW1-015GP006 FW1-020GP011 FW1-020GM011 FW1-025GP011 FW1-025GM011, but much lower cost.

* Minimal pressure loss
* Good repeatability
* High switch capability
* Dirt-resistant
* Hermetic separation of mechanical
  and electrical component
* OEM customized is available
Oil Flow Switches
Specification:
* Shell Material:  Stainless Steel 304 316L;
* Pipe Size: 1/4" DN8; 3/8" DN10; 1/2" DN15; 3/4" DN20; 1" DN25
* Flow Range: 0.6L/min ~ 8.0L/min; 1.0L/min ~ 15L/min; 2.0L/min~25L/min
* Tolerance: -/+5% of full scale
* Hysteresis: depend on switch position,  Min.0.5L/Min
* LED Indicator: DC indicate switch status;  AC no LED
* Mode of connection: Contact for locking plug M12
* Output:  reed switch 24VDC/250VAC 100mA
* Max Pressure:  100bar
* Average pressure loss: 0.3bar at 25L/min
* Substances temperature:  -30C ~ +90C

* Protection class: IP65 (IP67 available)





Type

Max Pressure

Max Flow

Adjustable Range

Thread

GE-342G008

100bar

40L/min

0.6~8   1~15   2~25 L/min

G1/4" NPT1/4"

GE-342G010

100bar

60L/min

0.6~8   1~15   2~25 L/min

G3/8" NPT3/8"

GE-342G015

100bar

100L/min

0.6~8   1~15   2~25 L/min

G1/2" NPT1/2"

GE-342G020

100bar

100L/min

0.6~8   1~15   2~25 L/min

G3/4" NPT3/4"

GE-342G025

100bar

100L/min

0.6~8   1~15   2~25 L/min

G1" NPT1"
