Pressure Differential

  • GE-924 Air Differential Pressure Switches
  • GE-924 Air Differential Pressure Switches
GE-924 Air Differential Pressure SwitchesGE-924 Air Differential Pressure Switches

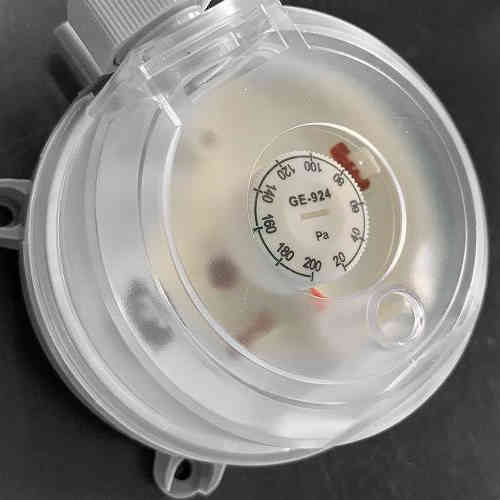

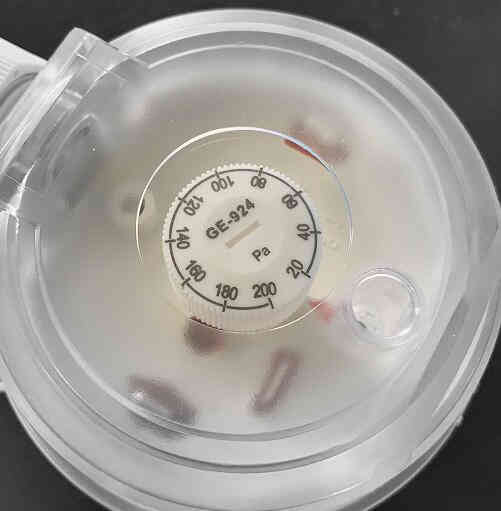

GE-924 Air Differential Pressure Switches

  • ExdIIBT4 CT6.
  • Product description: GE-924 Air Differential Pressure Switches, CE certificate, ATEX Explosion Proof type is available, ExdIIBT4 CT6.
  • INQUIRY

GE-924 Air DP switch is  monitoring over-pressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases. It can be used to sense (differential) pressure and flow of air in ducts and pipes. Monitoring air filters and ventilators, Monitoring industrial cooling-air circuits, Maximum air flow controller for variable air volume systems

Specification:
* Max. differential pressure: 5000Pa
* Protection Class: IP54
* Output: 1.0A (0.4A)/ 250VAC
* Working temperature:-20~85 C
* Storage temperature: -40~85 C
* Min. Actuating pressure: 20Pa(Standard);
min.starting interval: 10Pa;
range: 20~30Pa
* Installation Direction: vertical (standard installation style)
* Hose connection: pipe P6.2mm

* ATEX Explosion Proof is available, ExdIIBT4, or CT6


Type

Adjust Range

Return Difference

Deviation

GE-924A

20~200 Pa

10 Pa

10%

GE-924B

30~300 Pa

20 Pa

10%

GE-924C

50~500 Pa

20 Pa

10%

GE-924D

100~1000 Pa

20 Pa

10%

GE-924E

500~2000 Pa

100 Pa

10%

GE-924F

500~2500 Pa

150 Pa

10%

GE-924G

1000~5000 Pa

200 Pa

10%
