Flow Meter

  • Portable Liquid Flowmeter
Portable Liquid Flowmeter

Portable Liquid Flowmeter

  • no moving part in the EU-109H ultrasonic instrument
  • Product description: The EU-109H Ultrasonic Flow Meter is a portable instrument which could be taken to the field and could measure the fluid flow moveably, and now widely applied in some non-contact measuremen
  • INQUIRY

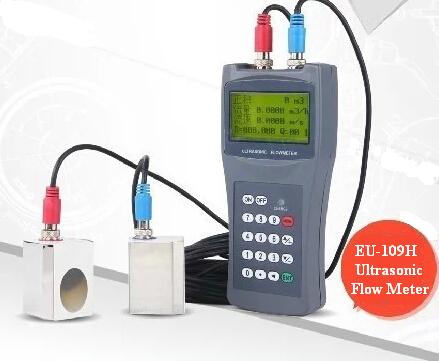

The EU-109H Ultrasonic Flow Meter is a portable instrument which could be taken to the field and could measure the fluid flow moveably, and now widely applied in some non-contact measurement with corrosive, clean or ordinary fluid fields of the petrochemical, food and water industry.

Portable Measurement Liquid Flow Meter

Linearity

0.5%

Repeatability

0.1%

Accuracy

0.5%~1.0% of reading at rates>0.2mps

Response Time

0-999 seconds, user-configurable

Velocity

-/+35m/s

Pipe Size

1/2" ~ 240" (DN15mm - DN6,000mm)*

Pipe Material

All metals, most plastics, lined pipes

Units

English (U.S.) or metric

Totalizer

Three 7-digit totalizers for totalizing net, positive, and negative flows respectively

Liquid Types

Virtually all liquids and liquids with minor solids (<10,000ppm). Full pipes

Display

4 x 16 letters

Digital Interface

OCT digital output, can be configured as frequency or pulse output
RS-232C, baud-rate: from 75 to 57600. serial communication port with simplified flowmeter protocol. Users protocols can be made on enquiry.

Transducers

Model M1 as the standard; other 3 models optional

Transducer Cable

Standard 2m x 10m. optional 2 x 500 meters

Power Supply

3 AAA Ni-H built-in batteries. When fully recharged it lasts over 10 hours.
100V-240VAC for the charger

Data Logger

Built-in data logger can store over 2000 lines of data

Housing Material

Aluminum alloy protective case. Suitable for normal and harsh environment

Case Size

100mm x 66mm x 20mm

Handset Weight

1.2 lbs (514 g) with batteries
