Flow Meter

  • Portable Flow Current Velocity Meter
Portable Flow Current Velocity Meter

Portable Flow Current Velocity Meter

  • 0-8m/s 15m/s is available
  • Product description: Portable Flow Current Velocity Meter is smart, aesthetic appearance, compact design, simple operation, convenient when measuring. It is widely used to measure the flow current velocity in river, irri
  • INQUIRY
Specification
This portable flow current velocity meter is working for point-by-point measuring for accessing the water current speeds in running waters. The measure water speed values are displayed on a hand terminal, and the stored values are transferred to a PC by means of the Software.  It produce by the standard ISO2548-73, C class accuracy.


Application
This flow current velocity meter is smart, aesthetic appearance, compact design, simple operation, convenient when measuring. It is widely used to measure the flow current velocity in river, irrigation canal, surface run off, hydrological experiment, and measuring pipeline flow to test the efficiency of the pump station, waste water monitoring and see page flow measuring in the Environmental protection.

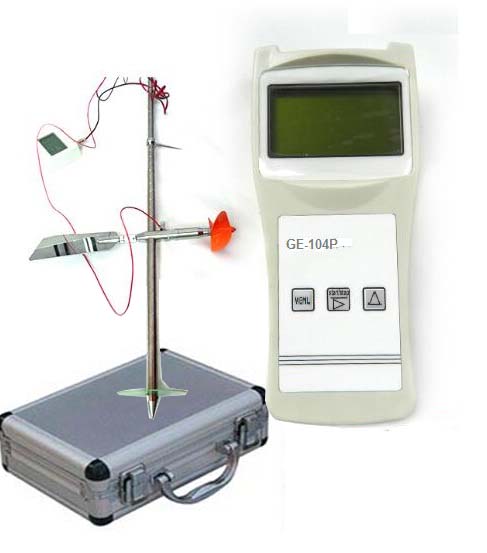

GE-104P Portable Flow Current Velocity Meter


Technology Data:
* Measure Range: 0.05m/s ~ 8.00m/s, 15m/s is available
* Propeller Start Flow: <0.05m/s
* Accuracy: C Grade, better than 2.5%
* Propeller swing diameter: 60mm
* Max Working Depth: 40m
* Suspended solids content: <200g/L (if more solid, we could supply doppler type)
* Water Temperature: 0C ~ 35C
* Power Supply: built-in batteries. When fully recharged it lasts 24 hours
* Identify Equation - Mean square error: when m<1.2, V<0.2m/s; relatively error<5%
* Protect Grade: IP65
